Produktdetails:
|
| Kühlmethode: | Luftgekühlt | Strahlungsmethode: | Luftwaffe |
|---|---|---|---|
| Umgebungstemperatur/Luftfeuchtigkeit: | -20 bis 60°C | Kühlleistung: | 35w |
| Eingangsleistung: | 50W | Heizleistung: | 85W |
| Strom für Heiß-/Kaltseitenlüfter: | 0,24/0,20 A | TEM-Nenn-/Anlaufstrom: | 3.9/5.0a |
| Nenn-/Maximalspannung: | 24/30 VDC | Gesamtdimension: | 120 mm x 102 mm x 143 mm |
| Gewicht: | 1,3 kg | Lebensdauer: | >=70.000 Stunden |
| Toleranz: | 10 % |

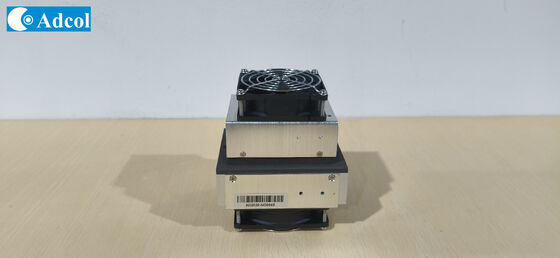

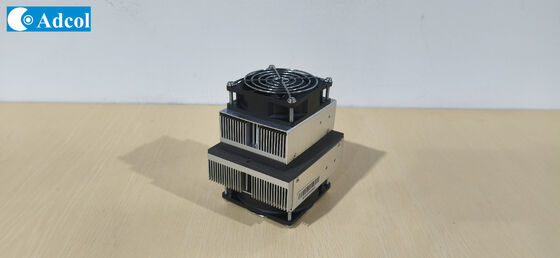

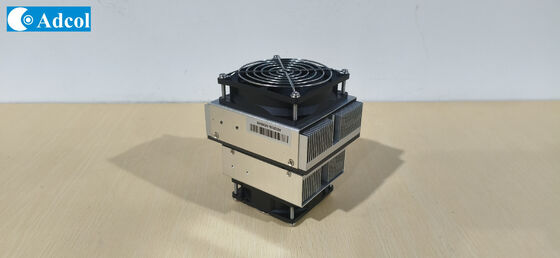

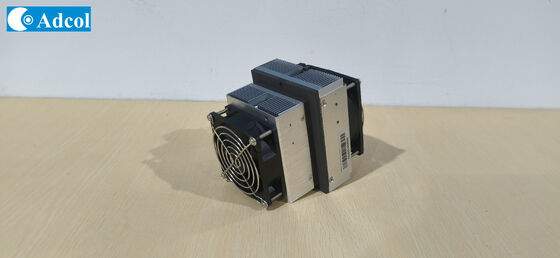

ATA035-12VDC Air to air thermoelectric Cooler Assembly 1.Product Introduction The ATA035-12 TE Cooler is an air-to-air thermoelectric cooling module with 12V DC input and 35W cooling power. It adopts dual fans for cold and hot sides. Operating temperature ranges from -10 to 55℃, weight 1.1kg. No refrigerant required, compact and easy to install, ideal for equipment temperature control and lab cooling. 2.Features 15W capacity rated at ΔT = 0ºC,Tambient = 30°C Refrigerant free
